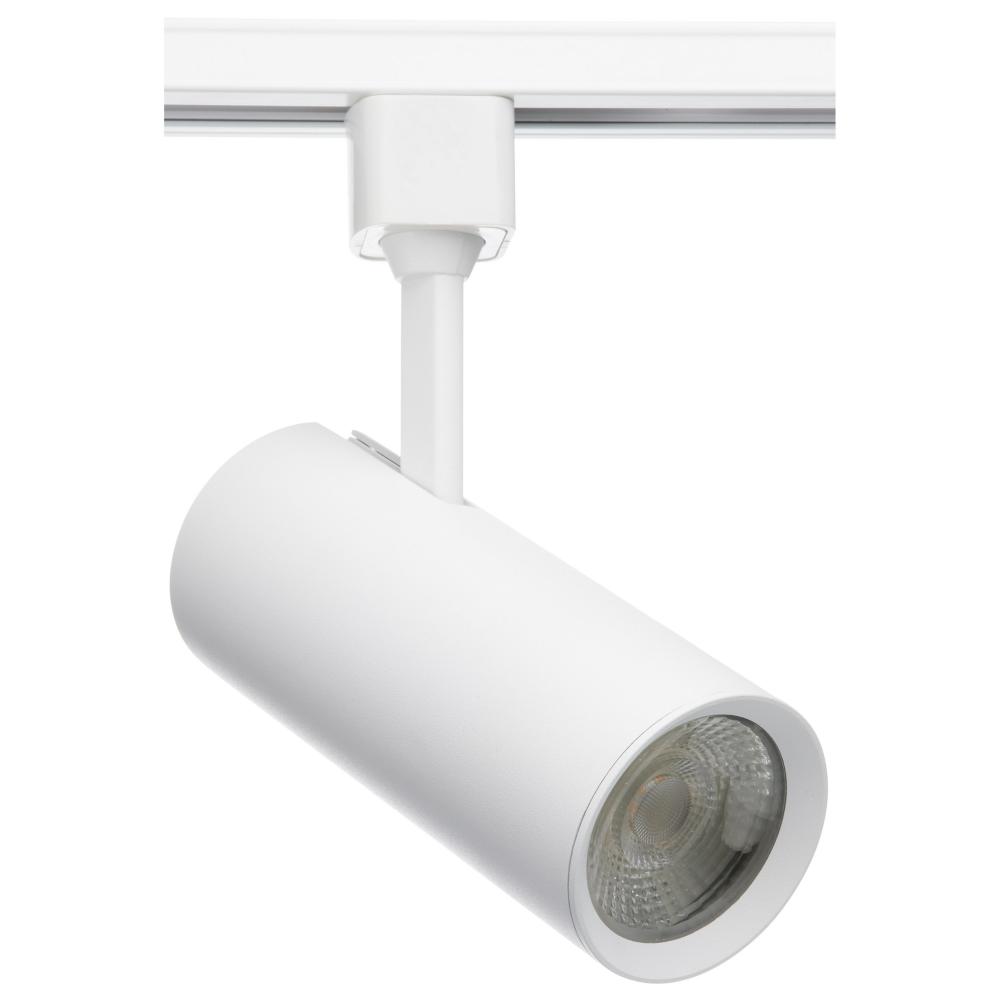

20 Watt; LED Commercial Track Head; White; Cylinder; 24 Degree Beam Angle (TH611)
by Nuvo
20 Watt; LED Commercial Track Head; White; Cylinder; 24 Degree Beam Angle
Product Specification
Item #
TH611
Dimensions
Height: 2.50"
Width: 2.50"
Additional product details
Category
Track Ltg.
Subcategory
Track Heads
Finish
White
Style
Contemporary
, Traditional
Option
LED
, Prop 65
Lumens
1101-1600
Kelvin
2501-3000
Category
Track Lighting
Sub Category
Track Head
Style
Contemporary
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Warm White
Dimmable
Yes-Dimmable
Each Height
9.06
Each Length
3.74
Each Width
3.15
Length
6.13
Lumens
1200L
Tariff Code
9405.11.6020
Warranty
5-Years
Amps
0.167A
ANSI Base
Integrated
BAA Compliant
No
Beam Angle
24
CA Prop-65
Lead
CCT Selectable
No
CEC
California T24 2016 - 2022 JA8 Listed
CEC Terse
Lawful for sale in California
CEC Web Text
California T24 Listed
Country Of Origin
Thailand
CRI
93+
Dimmable Down To
100 to 20 percent
Dimmable Function
120V only
Each Cube
0.0618
Each Quantity
1
Efficacy
60.00 LPW
FCC Compliant
Yes
Feature 1
Sleek design, Rugged Construction
Feature 2
White textured aluminum finish
Feature 3
20W, 24 deg. Beam angle
Feature 4
High CRI and R9 Values
Feature 5
Superior LED performance
Feature 6
Precise Beam Control
Feature 7
Smooth Dimming Control
Finish Family
White
Incandescent Equivalent
75W
Indoor Outdoor
Indoor
IOT Enabled
No
JA8 Compliant
Yes
Lens Material
Polycarbonate (PC)
Long Description
The new SATCO NUVO shotgun-style Pro Series LED track head offers a distinct look while providing superior illumination for high-demand applications. Built to withstand the demanding, everyday operation that comes with use in commercial settings while main
Material
Die-Cast Aluminum
Mounting Procedure
Track
Operating Frequency
60Hz
Operating Temp
-20C (-4F) to +40C (+104F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.92
Quantity In Pack
1
R9 Value
67
Replaceable Light Source
No
RoHS Compliant
Yes
Romance Copy
The new SATCO NUVO shotgun-style Pro Series LED track heads offer a distinct look while providing superior illumination for high-demand applications. Built to withstand the demanding everyday operation that comes with use in commercial settings while maint
Safety Listing
cETLus
SDS class
LED_Fixture
Short Description
TRACK PRO SERIES- 20W- WH- 24
Sloped Ceiling Compatible
Yes
Temperature (CCT)
3000K
Title 20 Compliant
Exempt
Title 24 Compliant
Yes
Track Head Style
Cylinder
Wattage Selectable
No
Weight Lb.
0.87
Manufactured By
Nuvo
Finish
Additional options that would change other selections
Recommended Items
Call for Price
BASE PRICE:
$
114
00
/
/ 1
($114.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer may be Out Of Stock.
