LED Flat Panel - 40W - 2 ft. x 2 ft.- 5000K - 120-347V : 65/335

No Image
Available

Image may not reflect selected features

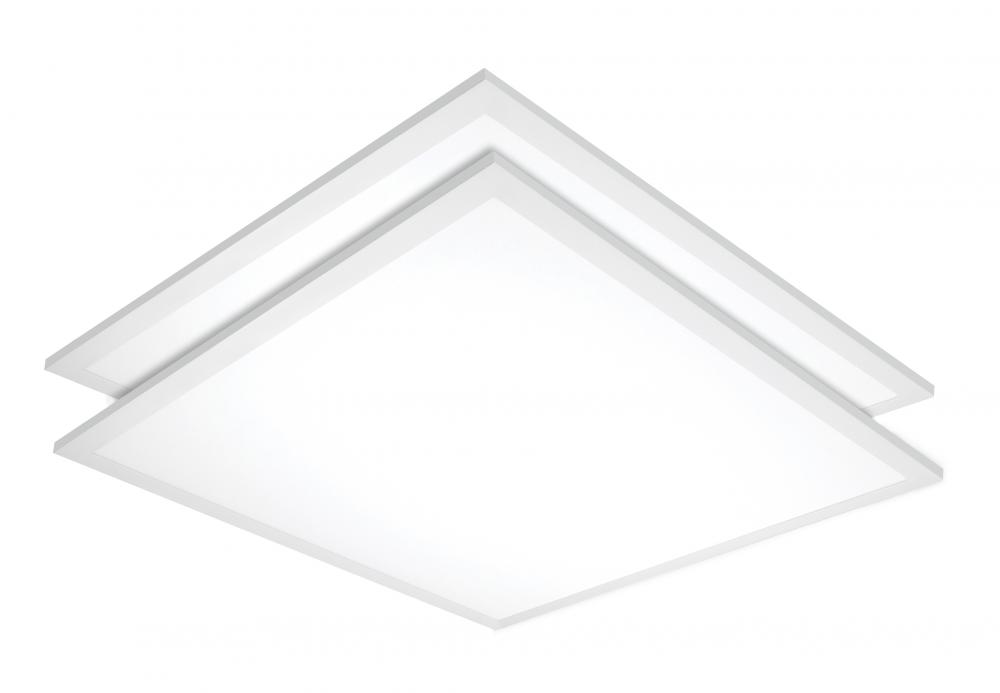

LED Flat Panel - 40W - 2 ft. x 2 ft.- 5000K - 120-347V (65/335) by Nuvo

LED Flat Panel Fixture; 40W; 2 ft. x 2 ft.; 5000K; 120-347V

Product Specification

Item #

65/335

Dimensions

Height: 0.41"

Width: 23.69"

Finish

White

Additional product details

Category

Flat Panel

Sub Category

Edge Lit

Style

Utility

Additional Info

Pricing Note- Product must be ordered in multiples of 2. Pricing (not shown here) is for one piece, even though there are 2 pieces in a case.

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Natural Light

Dimmable

Yes-Dimmable

Length

23.69

Lumens

4400L

Warranty

5 Year Limited - Fixtures

Amps

0.333-0.115A

ANSI Base

Integrated

BAA Compliant

CA Prop-65

Lead

CCT Selectable

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Connection

Direct Wired

Country Of Origin

China

CRI

80+

Dimmable Down To

100 to 20 percent

Dimmable Function

0-10V Dimming Only; Use 120-277V or 347V Dimmers only

Each Quantity

Efficacy

110.00 LPW

FCC Compliant

Yes

Finish Family

White

Fixture shape

Square

Flicker Free

Yes

Incandescent Equivalent

175W

Indoor Outdoor

Indoor

JA8 Compliant

Mounting Procedure

Ceiling

Operating Frequency

50/60Hz

Order In Multiples Of

Pack Type

Bulk

Panel Size

2x2

Power Factor

0.9

Quantity In Pack

Replaceable Light Source

RoHS Compliant

Yes

Safety Listing

cULus - Certified

SDS class

LED_Fixture

Short Description

2X2 PANEL DLC 4.2 120-347V

Temperature (CCT)

5000K

Title 20 Compliant

Exempt

Title 24 Compliant

Wattage Selectable

Weight Lb.

6.88

Manufactured By

Nuvo
