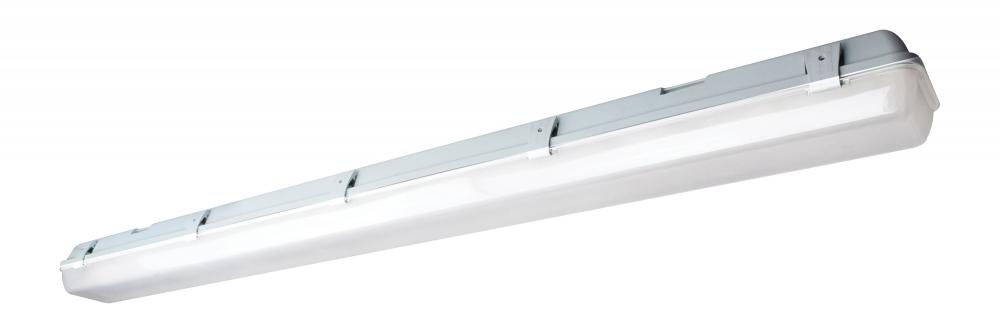

LED Vapor Proof Surface Mount - 58W - 5000K - 100-277V (62/1064)
by Nuvo
LED Vapor Proof Surface Mount; 58W; 5000K; White/Gray Finish; 100-277V
Product Specification
Item #
62/1064
Dimensions
Height: 2.94"
Width: 4.53"
Finish
White / Gray
Additional product details
Category
Flush Mounts
Subcategory
Other Flush Mounts
Finish
Combination Finishes
, Gray
, White
Option
LED
, Prop 65
Category
Linear
Sub Category
Vapor Proof
Style
Utility
Avg Rated Hours
50000
Bulb Shape1
Integrated LED
Bulb Type1
LED
Color Temperature
Natural Light
Dimmable
Yes-Dimmable
Each Height
5.71
Each Length
52.36
Each Width
7.09
Length
50
Lumens
7000L
Tariff Code
9405.42.6000
Warranty
5 Year Limited - Fixtures
Amps
0.580-0.209A
ANSI Base
Integrated
BAA Compliant
No
CA Prop-65
Lead
CCT Selectable
No
CEC
T20 Exempt - Fixtures Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Connection
Direct Wired
Country Of Origin
China
CRI
80+
Dimmable Down To
100 to 20 percent
Dimmable Function
0-10V Dimming Only
Each Cube
1.2267
Each Quantity
1
Efficacy
120.69 LPW
FCC Compliant
Yes
Finish Family
White
Incandescent Equivalent
325W
IP Rating
IP65
JA8 Compliant
No
Material
Plastic
Mounting Procedure
Ceiling
Operating Temp
-30C (-22F) to +55C (+131F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
Replaceable Light Source
No
RoHS Compliant
Yes
Safety Listing
cETLus - Listed
SDS class
LED_Fixture
Sensor Detection Range
16m x 15m Maximum
Sensor Field of View
30 deg to 150 deg
Sensor Mounting Height
19.69 Feet (6m) Maximum
Sensor Operating Temperature
-20C (-4F) to 60C (+140F)
Sensor Operation
Intergrated Microwave Sensor
Sensor Time Delay
5s;30s;1min;5min;10min;20min;30min
Short Description
58W VAPOR PROOF SURFACE MOUNT
Temperature (CCT)
5000K
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Weight Lb.
5.93
Manufactured By
Nuvo
