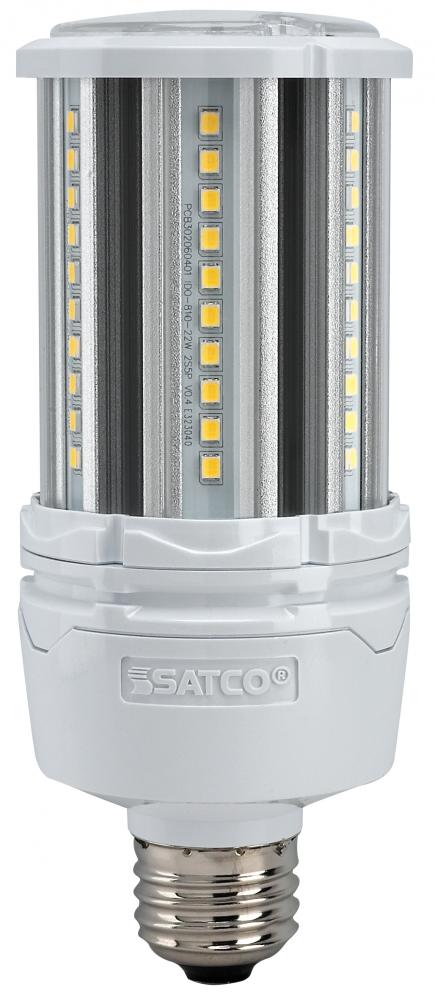

22 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt (S39671)
by Satco Products Inc.
22 Watt LED HID Replacement; 2700K; Medium base; 100-277 Volt
Product Specification
Item #
S39671
Dimensions
Width: 2.38"
Additional product details
Category
Light Bulbs
Subcategory
LED Bulbs
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
50000
Bulb Kelvin
2700K
Bulb Shape
Corncob
Diameter
2.38
EA Length
2.87
Harmonized Codes
8539.52.0091
Length
5.94
Lumens
2860L
Shap Carton Width
2.87
Ship Carton Height
7.28
Ship Weight
0.84
Warranty
5 Year Limited - Hi-Pro
Weight
0.68
AC/DC
AC 90-305V
Additional Info
Emits no UV light; Contains no Mercury (Hg); Acceptable for use in food prep areas
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass- Direct wire only 100V-277V
Beam Spread
300
Bulb ANSI Base
E26
Bulb Base
Medium
Bulb Finish
Clear
Burning Position
Universal
Carton Cubic Feet
0.0347
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - >2600 Lumens
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White
Country Of Origin
China
CRI
80+
DLC Approved
No
Efficacy
130.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
MOL: 5.94 inches, MOD: 2.38 inches
Feature 2
Superior 80 CRI light quality, 2860 lumens, 2700K warm white light, with a 300 degree beam spread
Feature 3
Rated for enclosed fixtures
Feature 4
Damp rated, for use both indoors and outdoors
Feature 5
22 watt LED replaces 150 watt incandescent
Feature 6
Clear lens aluminum corncob shape with plastic white housing
Feature 7
LED energy efficient fixture
Feature 8
5 year limited warranty
Flourescent Equivalent
40W
HID Equivalent
100W
Housing Color
White
Incandescent Equivalent
150W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IP Rating
IP64
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens
Yes
Lens Finish
Clear
Lens Material
Plastic (PS)
Location Rating
Damp
Long Description
Satco's S39671 22 watt LED HID replacement lamp is ideal for street lights, gymnasium lights, stadium lights, warehouse lights, parking garages and similar applications for lighting large, open areas. The clear bulb with its corncob shape and medium ba
Material
Aluminum / Plastic
Minimum Compartment Size
Length: 8.5 in. Width: 6 in. Depth: 6 in.
Operating Frequency
50/60Hz
Operating Temp
-25C (-13F) to +45C (+113F)
Order In Multiples Of
1
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
Satco's 22 watt LED HID replacement lamp is ideal for street lights, gymnasium lights, stadium lights, warehouse lights, parking garages and similar applications for lighting large, open areas. The clear bulb with its corncob shape and medium base has
SDS class
LED_Lamp
Shatter Proof Text
Shatter resistant materials
Short Description
22W/LED/HID/2700K/100-277V E26
Specification Notes
DLC 5.1 replacement S23147; Non-DLC replacement S49671
Style
Contemporary
Surge Protection
Built-in surge protection - 2.5KV
Technology
LED
Title 20 Compliant
Exempt
Title 24 Compliant
No
Wattage Selectable
No
Watts
22W
Manufactured By
Satco Products Inc.
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
48
00
/
/ 1
($48.00 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer may be Out Of Stock.
- This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.
